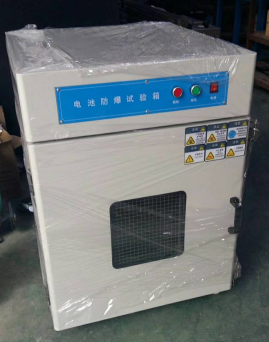

Size 300*300*300mm Safety Test Equipment Battery Charge And Discharge Explosion-proof Box

Battery charge and discharge explosion-proof test chamber JD-6005C

First, the product name: battery charge and discharge explosion-proof test box

Second, the product model: JD-6005C

Third, the product overview:

The test machine is mainly used for overcharge and discharge of the battery. In the charge and discharge test, the battery is placed in the explosion-proof box, and the external charge and discharge tester is used to protect the operator and the instrument. The test box of the machine can be tested according to the test requirements. Customized.

Fourth, meet the criteria:

GB 31241-2014, GB/T 18287-2013, GB/T 8897.6-2008, YD/T 2366.1-2011, GB/T 21966-2008,

MT/T 1051-2007

V. Equipment technical parameters:

1. Test box size: 300*300*300mm (length * width * height); (can also be customized according to customer requirements)

2. Material: outer box: 1.2mm thick A3 steel plate and treated by baking paint, inner box: SUS#201 stainless steel, thickness 1.0mm;

3, single door, the inner box door is made of stainless steel, and the silicone is forced to tighten, and the door has an observation window;

4. The door is connected to the box by a strong hinge, and the explosion-proof cold handle door lock;

5. Observation window: 250×250mm transparent observation window on the front of each test box, which is convenient for observing the state of the test product in the test box;

6. Teflon tape is added inside the test box, which is effectively insulated and effectively flame retardant, easy to clean;

7. A 50mm diameter test hole is opened on the right side of each layer of the box to facilitate the test connection;

8. The separate test panel controls the lighting and exhaust in each test room. When there is a fire, the exhaust fan in the box automatically turns on the exhaust.

9. There is a pressure relief port on the back side of the box.
