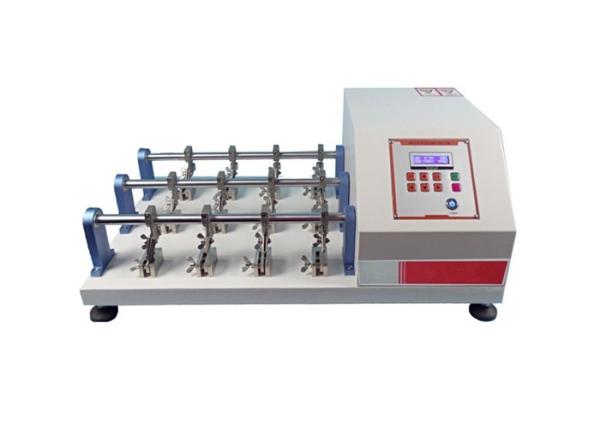

Bending Angle 22.5° Rubber Testing Equipment Leather Resistance Testerr

Product Description:

This machine is used to test the folding resistance of various leather materials, leather materials and fabrics. It will clamp the inner and outer sides of the tested materials, and after repeated twists and turns for a certain number of times, observe the damage of the tested materials. This machine is suitable for use. For leather uppers, clothing materials, bags and other thin leather.

Reference Standard:

QB-T 2714-2005 Determination of the fastness to fastness of leather physical and mechanical tests, ISO 5402:2002 "Leather - Physical and mechanical tests - Fastness to break by deflection test", International leather craftsman and chemist Federation (IULTCS) standard IUP20. BS-3144, JIS-K6545, SATRA TM55, DIN53351, GB/T20991

Working principle:

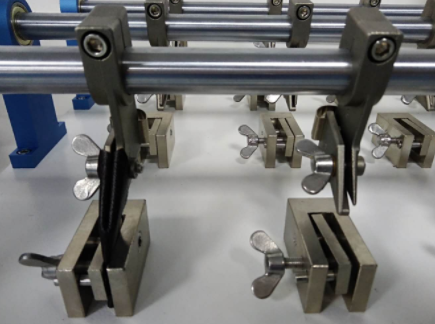

the upper part of the test specimen is clamped in the movable clamp, the lower part is facing outward, the outer fold is clamped in the fixed fixture, and the upper moving clamp drives the sample to move, thereby checking the sample production. Defects.

Product specifications:

1. Speed: (100 ± 5) cpm

2. Fixture: 12 groups

3. Test piece: (70 × 45) mm

4. Bending angle: 22.5°

5. Counter: 6-bit electronic

6. Volume: (52 × 64 × 40) cm

7. Weight: about 60kg

8. Power supply: AC220V 50HZ

Standard:

one host, one power cord, one sampling knife, one manual.
