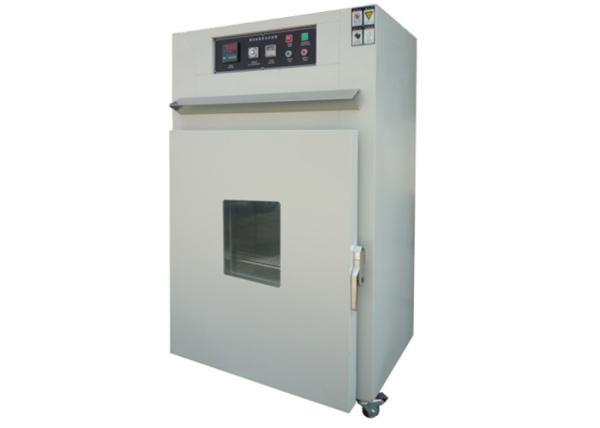

Sus#304 Material 150l High Temperature Test Chamber With High Temperature Test Chamber At 300 °c

Product Usage:

It is mainly used for aging test of electronic components, plastic chemicals and electronic products, as well as high temperature stress-reduction test. It is an indispensable testing equipment for testing and standardization of product industry components and parts in various fields, quality inspection management.

Technical Parameters:

Temperature range Section B:RT+10～300°C

Inner box: 2-5 layers can be selected
Inner box size: width × height × depth (CM) 50 × 60 × 50
Outer box size: width × height × depth (CM) about 80 × 132 × 69
Temperature range : RT+10～300°C
Power supply: voltage 380V 50Hz
Total heating power: about 8KW
Accuracy: Control accuracy ±0.5 °C
Distribution temperature: ±1.0 °C% (no load)

Equipment material structure:

1. The internal test box is made of SUS#304 stainless steel; the outer case is made of SECC steel plate, and the fine powder is painted;
2. Insulation material
High-density imported rock wool with low thermal conductivity and strong resistance to heat radiation, which can effectively prevent heat emission
Soft silicone is tight (Silicon Packing), heat-resistant, corrosion-resistant, airtight, environmentally friendly, non-polluting
3. Equipment structure
Single door, controller in the upper part of the machine, stainless steel luxury handle, with explosion-proof lock door buckle
Adjustable feet and easy to move casters on the bottom of the box
4. Air circulation system
High-temperature resistant long-axis motor with powerful multi-wing wind wheel, forced horizontal air circulation: the wind source is driven by the circulating motor to drive the wind wheel through the electric heater, and the hot air is sent from the air duct to the inside of the oven, and the hot air is used to suck in the wind. The channel becomes the source to recirculate the heating, thereby reducing the energy loss and ensuring the temperature uniformity in the tank. When the door is opened and closed, the air circulation system can quickly return to the operating state temperature value, thereby making the temperature more Uniform
5. Temperature control system
The PID microcomputer automatically calculates the PV/SV simultaneous display. It can freely set the required temperature according to the individual's wishes within the allowable range of the machine temperature, and can ensure the accuracy of its temperature control through the PID parameter setting in the table. The system is self-calculated to derive appropriate temperature control parameters.
6. Timer: use 9999 digital setting, digital display type, and when there is a thermometer, the time to power failure alarm
The temperature sensor adopts CA.(K)TYPE; the temperature control mode is P.I.D+S.S.R thyristor
7. The heater is a honeycomb stainless steel heating tube with stable temperature rise, fast heating, no pollution and long service life.
8. Security system
Over-temperature protection, using thermostat built-in over-temperature prevention loop, O.T.P cutting electric heating and BZ alarm; overload automatic power-off system
9. Motor overload protection
Electric overcurrent protection device

Factory list​:
