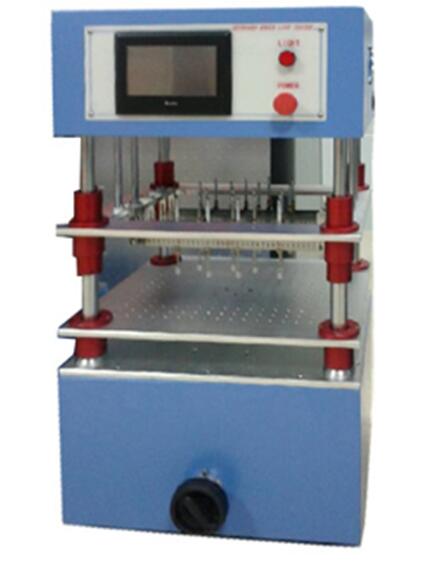

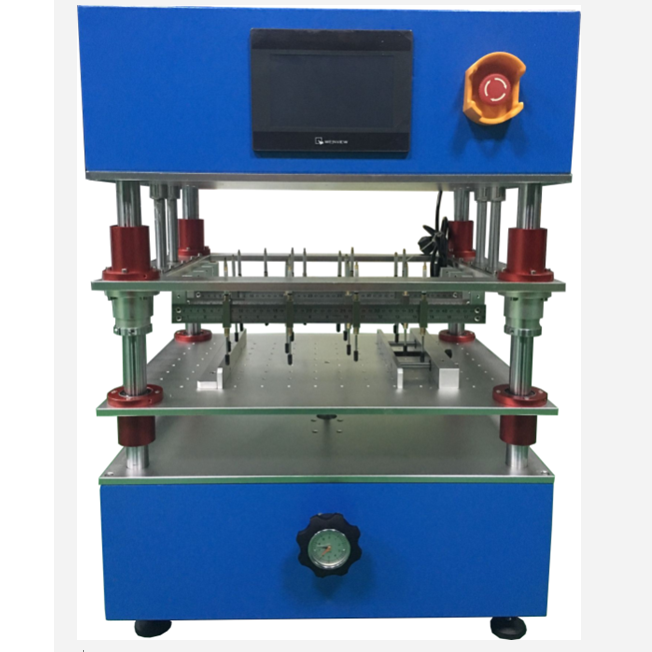

Touch Screen Control Keyboard Button Life Test Machine Test Speed 0~360rpm/min

product description:

The keyboard key life tester can test the durability of the buttons of NOTEBOOK (mobile phone, PDA) and various buttons and switches. Several products can be tested at the same time (each product can be tested more). Each button probe can be set to different pressures and different levels. With the setting of times and the adjustable test speed, it can be described as the most cost-effective hit life testing machine on the market.

product advantages:

1. Up to 360 high-speed movements per minute, which greatly shortens the production cycle of new products;

2. The test points can be installed freely;

3, the height of the probe and the adjustable size of the force;

4. The distance between the two probes in the X and Y directions is small, which is not only suitable for the detection of ordinary computer keyboards, laptop keyboards, mobile phones, remote controllers, etc.;

5, low noise, stable operation, no vibration;

6, touch screen control, easy to operate.

Product principle:

The keyboard key life test machine is powered by a motor, and the eccentric wheel is rotated to generate a swirling effect to achieve a reciprocating motion. With the eccentric device, the motor rotates in only one direction, greatly reducing the instrument failure rate. And improve the test speed, saving you valuable time. The transmission adopts linear guide rails, which solves the problem that the test products will be deflected after repeated times.

Specifications:

1. Control panel: LCD

2. Motor: Japan's Mitsubishi Motors with Taiwan imported planetary reducer

3. Load adjustment probe: 20

4. Load range: 50-500g/200-1000g

5. Work height adjustment range: 100mm

6. Probe height adjustment: 10mm

7. Minimum spacing between two probes: 10 mm in the X direction and 12 mm in the Y direction

8. Fixture clamping capacity: 450*250mm

9. Probe installation range: 450*250mm

10. Number of trials: 9999999*10 times

11. Test speed: 0~360rpm/min

12. Appearance size: 526*426*980mm

13. Voltage: AC220V

14. Weight: 100KG

Test items:

● Computer, mobile phone, calculator, notepad and other keyboards for life testing;

● Silicone rubber buttons for fatigue testing.

Features:

●High-speed operation of up to 360 times per minute, which greatly shortens the production cycle of new products;

● Test point test points can be installed freely;

●The height of the probe and the size of the force are adjustable;

●The distance between the two probes in the X.Y direction is small, which is not only suitable for the detection of ordinary computer keyboards, laptop keyboards, mobile phones, remote controllers, etc.;

● Significantly reduced noise; ● Smooth operation and no vibration; ● Controlled by touch screen, beautiful and convenient operation.

Standard configuration:

● keyboard hit life test machine body platform; ● probe fixed rod 5;

● Large-scale universal fixtures; ● 20 load adjustment probes (multiple available).

(Different product fixture diagram)
